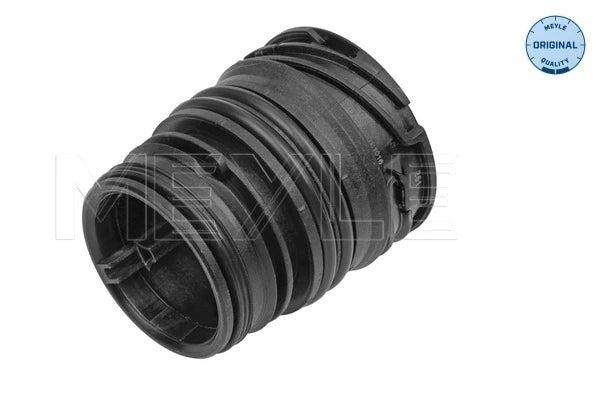

MEYLE Plug Housing / Mechatronic Sleeve – 100 930 0001 (ZF 8HP)

Quick Info

Transmission mechatronic plug housing for ZF 8-speed automatic gearboxes.
Used to seal and connect the gearbox mechatronic unit to the external wiring harness.

---

Description

MEYLE 100 930 0001 is a transmission-side plug housing (mechatronic sleeve) used on ZF 8HP automatic transmissions.

It provides the electrical connection between the gearbox mechatronic unit and vehicle wiring while also sealing the transmission against fluid leaks.

This is a common failure item on ZF 8-speed gearboxes and is often replaced during transmission servicing or mechatronic repairs.

---

Fitment

Transmission:

• ZF 8HP automatic gearboxes

Common variants:

• 8HP45
• 8HP50
• 8HP70
• 8HP90

---

Compatible Brands

• BMW
• MINI
• VW
• Jeep
• Dodge
• Chrysler

(Using compatible ZF 8HP transmissions)

---

Common BMW Models

• F20 / F21
• F30 / F31
• F10 / F11
• F15 X5
• F25 X3
• G30 5 Series

---

Part Numbers

• MEYLE: 100 930 0001
• BMW OE: 24147588896
• VW OE: 0CM301519
• ZF equivalent: 0.501.216.364

---

Technical Details

• Type: Mechatronic plug housing / connector sleeve
• Position: Transmission side
• Transmission type: 8-speed automatic
• Plug type: Round connector sleeve

---

Notes

• Installed in the transmission mechatronic unit
• Commonly replaced when leaking transmission fluid
• Direct OE-style replacement

---

Important

❗ Not a valve body or control module
❗ Does NOT include transmission fluid
❗ Always confirm gearbox type before ordering

---

Common issues when faulty

• Transmission fluid leak from connector area
• Gearbox warning messages
• Mechatronic communication faults
• Oil contamination in wiring plug

---

Fitment Summary

✔️ ZF 8HP transmissions
✔️ BMW / MINI / VW applications
✔️ Mechatronic connector sleeve
❌ Not engine related
