Timing Chain Kit – CHK1016M (Gates, BMW N57 Diesel)

Quick Info

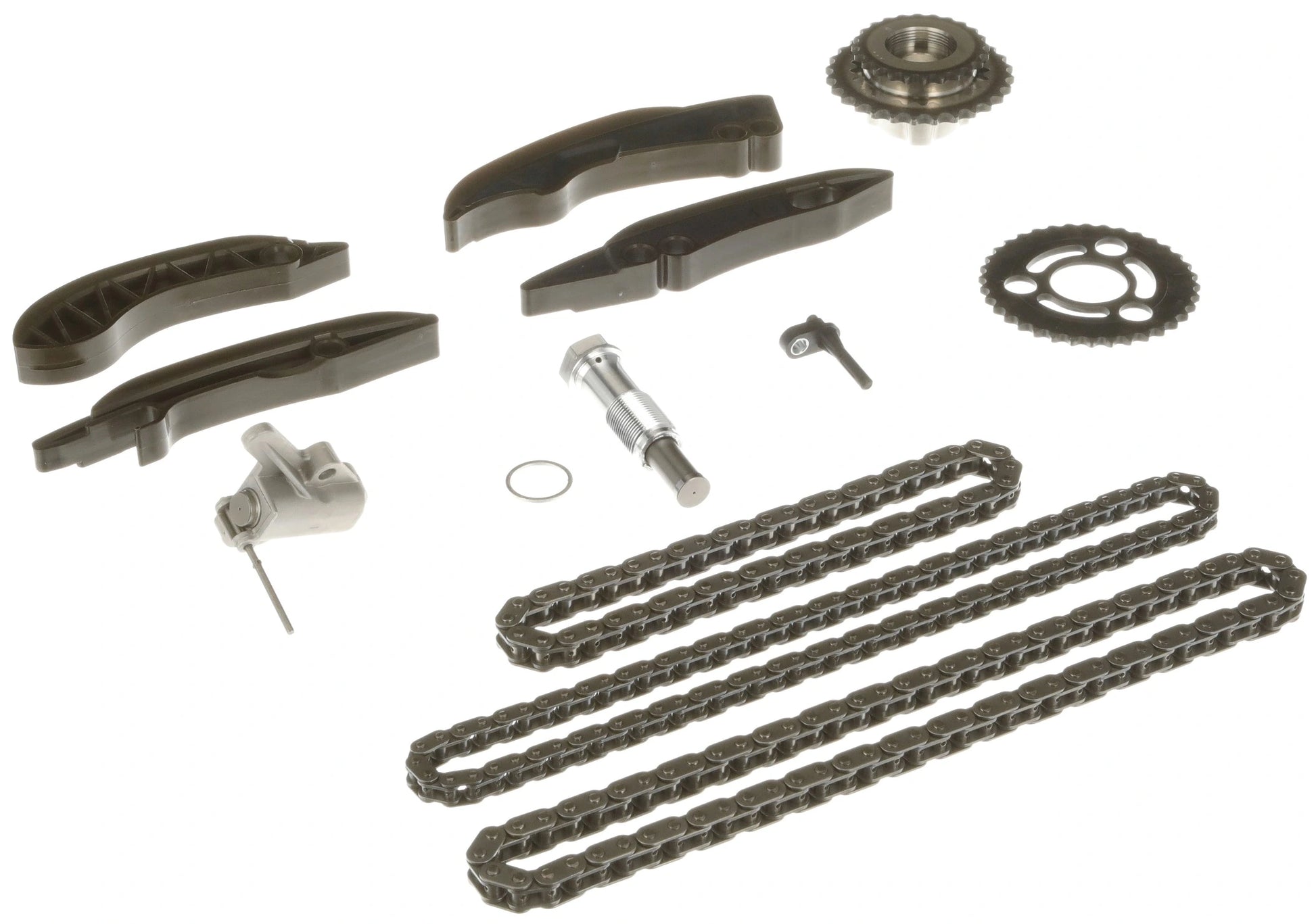

Complete timing chain kit for BMW N57 3.0 diesel engines.
Includes chains, guides, tensioners, camshaft sprocket and injection pump gear for full timing system repair.

---

Fitment

Engines:

• N57D30A
• N57 3.0D

---

Common Models

• F10 / F11 530d / 535d
• F30 330d / 335d
• F01 / F02 730d
• E70 X5 30d / 40d
• F15 X5 30d
• F16 X6 30d / 40d

---

Part Numbers

• Gates: CHK1016M
• OE references include:
  • 11318506654
  • 11318570649
  • 13527800025

---

What’s Included

• Timing chains
• Chain guides
• Hydraulic tensioners
• Camshaft sprocket
• Injection pump gear
• Oil jet

---

Technical Details

• Chain type: Simplex
• Chain links: 48 / 72 / 86 link setup
• Complete upper & lower timing system kit
• OEM-quality Gates components

---

Notes

• Designed for BMW N57 rear timing chain engines
• Common repair for timing chain stretch and startup rattle
• Professional installation recommended

---

Important

❗ Not for M57 engines
❗ Not for N47 4-cylinder engines
❗ Always confirm via VIN before ordering

---

Common issues when worn

• Timing chain rattle
• Engine timing faults
• Noise from rear of engine
• Risk of engine damage if chain fails
