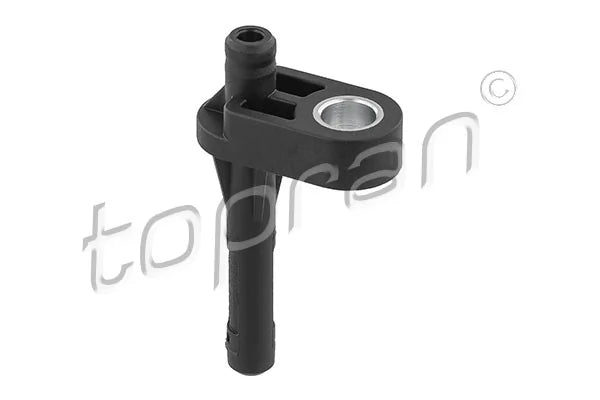

TOPRAN Oil Spray Nozzle / Timing Chain Oil Jet – 624 801

Quick Info

TOPRAN 624 801 is an oil spray nozzle used to lubricate the timing chain system on BMW diesel engines.
Directs engine oil onto the timing chain to reduce wear and maintain proper lubrication.

---

Description

TOPRAN 624 801 is a timing chain oil jet designed for BMW rear timing chain diesel engines.

It sprays pressurised oil directly onto the timing chain assembly to help reduce friction, chain stretch and guide wear. A blocked or damaged oil jet can lead to poor lubrication and premature timing chain failure.

Often replaced during timing chain repairs or engine rebuilds.

---

Fitment

Engines:

• N47 2.0D
• N57 3.0D

---

Compatible Brands

• BMW
• MINI

---

Common Models

BMW:

• E90 / E91 320d
• F30 320d / 330d
• F10 / F11 520d / 530d
• X1 / X3 / X5 diesel models

MINI:

• Cooper D
• Countryman D

---

Part Numbers

• TOPRAN: 624 801
• BMW OE: 13527797909

---

Technical Details

• Type: Oil spray nozzle / oil jet
• Position: Timing chain lubrication system
• Function: Sprays engine oil onto timing chain components

---

Notes

• Small but critical timing system component
• Commonly replaced during timing chain service
• Direct OE-style replacement

---

Important

❗ Not a fuel injector
❗ Not a pressure valve or sensor
❗ Incorrect lubrication can cause accelerated chain wear

---

Common issues when faulty or blocked

• Timing chain rattle
• Increased chain wear
• Poor lubrication to chain guides
• Premature timing chain failure

---

Fitment Summary

✔️ N47 = correct
✔️ N57 = correct
✔️ BMW + MINI diesel applications
❌ Not for M57 engines
